ReLab is a powerful and user-friendly library designed to streamline reinforcement learning experiments. With a curated collection of well-known RL agents and seamless integration with Gym environments, ReLab empowers you to train agents effortlessly, visualize their learned behaviors, and compare their performance across diverse metrics. Whether you're a researcher exploring state-of-the-art algorithms or a practitioner fine-tuning agents for real-world applications, ReLab simplifies the process, saving you time and effort.

Installation

Install Poetry

Linux, macOS, Windows (WSL):

curl -sSL https://install.python-poetry.org | python3 -

Windows (Powershell)

(Invoke-WebRequest -Uri https://install.python-poetry.org -UseBasicParsing).Content | py -

Install ReLab and its dependencies

Clone the ReLab repository:

git clone git@github.com:TheophileChampion/ReLab.git

cd ReLab

Install ReLab's package and its dependencies inside a virtual environment:

poetry install

Check that the installation was successful:

poetry run test_install

ReLab Fundamentals

ReLab provides a collection of well-known reinforcement learning agents and enables you to train them on any Gym environment. You can then visualize the learned policies and compare the performance of various agents. Before proceeding with the following sections, make sure that ReLab is installed and activate the virtual environment using the following command:

source ./.venv/bin/activate

Training an Agent

An agent can be trained by running the following command:

poetry run training --agent DQN --env ALE/Pong-v5 --seed 0

The training script accepts three parameters:

--agent specifies the reinforcement learning agent to train,
--env defines the environment in which the agent will be trained, and
--seed sets the random seed to ensure reproducibility.

As the agent is learning, you can visualize its performance using the following command:

tensorboard --logdir=./data/runs/

This will open a graphical interface at http://localhost:6006/, allowing you to monitor:

the agent's mean episodic reward,
the training speed (in milliseconds per training iteration), and
the memory usage of the training script.

Visualizing a Learned Policy

By default, ReLab saves the learned policy every 500,000 training iterations. Once an agent has been trained, you can visualize its learned policy using the following command:

poetry run demo --agent DQN --env ALE/Pong-v5 --seed 0

These parameters should look familiar, as they are identical to those used in the training script. By default, ReLab demonstrates the latest policy. However, you can specify a particular model checkpoint using the following command:

poetry run demo --agent DQN --env ALE/Pong-v5 --seed 0 --index 1000000

Here, the --index parameter allows you to select the policy learned by the agent after 1,000,000 training iterations. After running the above command, ReLab will generate a GIF of the agent's behavior, which can be found in:

./data/demos/Pong-v5/DQN/0/demo_1000000.gif

Comparing the Performance of Various Agents

ReLab also provides a script to generate graphs summarizing the agent performance:

poetry run draw_graph --agents DQN --env ALE/Pong-v5 --seeds 0 --metric mean_episodic_reward

Importantly, the parameters --agents and --seeds are now plural because the script accepts a list of agents and seeds. The --metric parameter allows you to compare agents based on various metrics, such as episodic mean reward, training speed, or memory usage. This script can also be used to compare multiple agents across different seeds, as shown below:

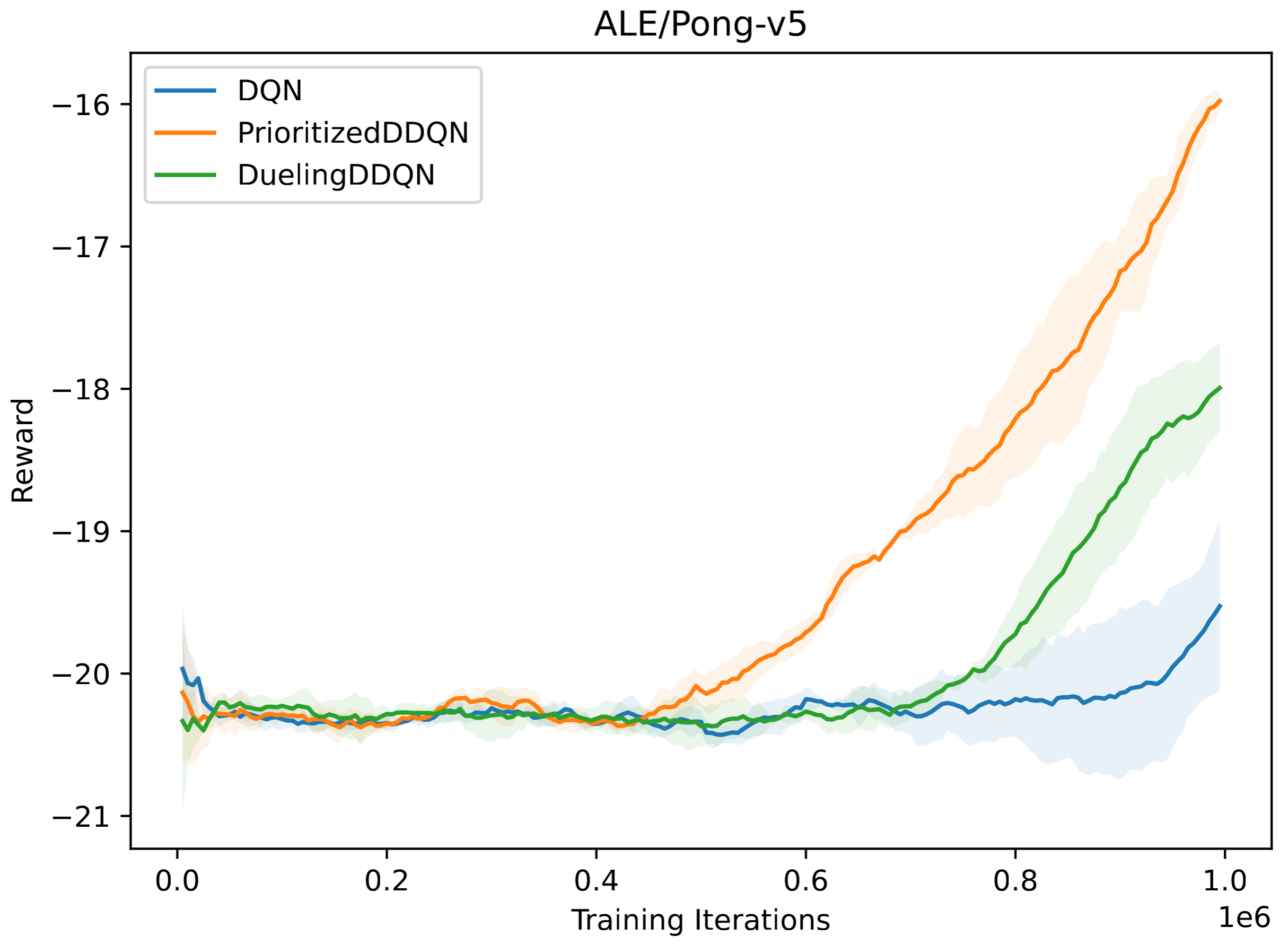

poetry run draw_graph --agents DQN RainbowDQN --env ALE/Pong-v5 --seeds 0 1 2 3 4 --metric mean_episodic_reward

When multiple seeds are provided, the graph will display a solid line representing the average metric, along with a shaded area indicating the metric's standard deviation.

For a deeper dive into advanced use cases of ReLab and additional examples, check out our In-Depth Tutorial.

Releases and Contributing

Please let us know if you encounter a bug by filing an issue.

ReLab follows a "fork and pull request" workflow. If you are planning to contribute, you must:

Fork ReLab to your GitHub account
Clone your fork on your computer
Create a new branch to work on
Make changes and commit them with a clear description
Push your branch to your forked GitHub repository
Open a pull request to the ReLab project

ReLab is still in beta. The latest version of ReLab is version 1.0.0-b.

License

ReLab has a MIT license, as found in the license file.
